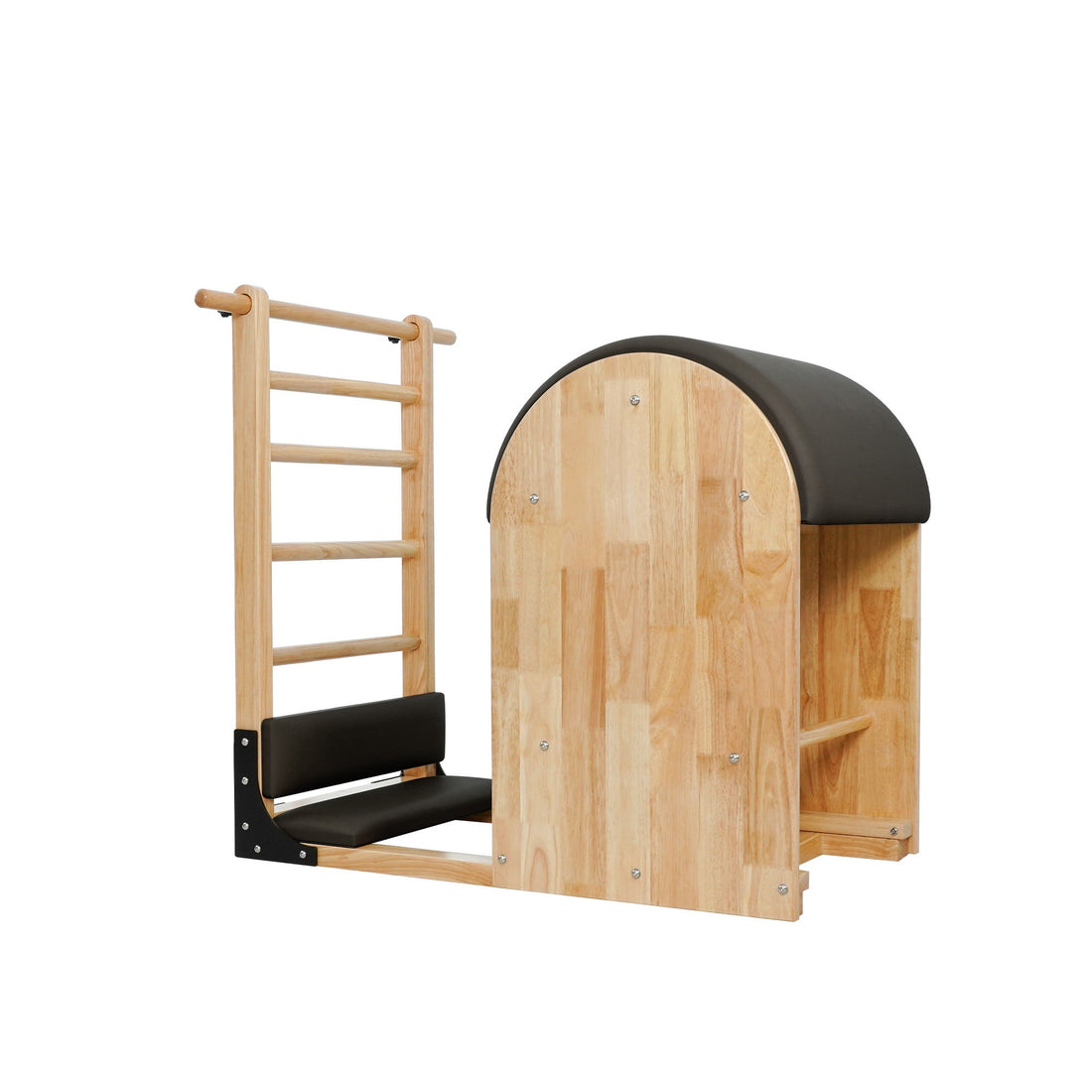

Pilates Ladder Barrel Exercises: A Guide to Movement, Setup and Safety

Pilates Ladder Barrel exercises use a curved padded barrel, a four-rung ladder and an adjustable sliding base to support controlled movement in several directions. Unlike a Reformer or Combo Chair, a traditional Ladder Barrel does not use springs. Your body weight, gravity, the barrel curve and your position relative to the ladder create the support and challenge.

You can use the apparatus for supported spinal flexion and extension, lateral movement, trunk control and mobility-focused exercises. The ladder also gives your hands or feet stable contact points during movements such as Swan, Mermaid, Side Sit-Up, Short Box and Horseback.

This guide explains what the Ladder Barrel adds to your practice, how to set it up and which exercises are commonly associated with it. It is an equipment guide—not a substitute for instruction from a qualified Pilates professional.

What Does a Ladder Barrel Add to Your Pilates Practice?

A Pilates Ladder Barrel combines two structures that work together.

The curved barrel supports part of your body while allowing another part to move around its arc. The ladder provides several positions for your hands or feet, helping you establish a stable base.

This combination can help you explore movements that may be difficult to organize on a flat mat.

The curved barrel

Depending on the exercise, the barrel may support your:

• Torso;
• Pelvis;
• Side body;
• Back;
• Abdomen;
• Hips.

Its curve changes your relationship with gravity. For example, your spine may move around the barrel during extension, flexion or lateral movement instead of remaining on a flat surface.

The barrel should provide firm, consistent support. It should not move, collapse or feel unstable when you position your body against it.

The four-rung ladder

The ladder gives you multiple contact points for your hands or feet. A different rung changes your starting height, body angle and distance from the barrel.

The highest rung is not automatically the most advanced setting, and reaching farther does not necessarily make an exercise more effective. Your correct position depends on:

• Your height;
• Your torso and leg length;
• The selected exercise;
• Your available range of movement;
• Your instructor’s intended setup.

The adjustable sliding base

The sliding base allows you to move the barrel closer to or farther from the ladder. This helps the same apparatus accommodate different users and exercise positions.

A shorter user may need a different barrel-to-ladder distance from a taller user. The appropriate distance may also change when the same person moves from a seated exercise to a standing or prone position.

The 1GKU Pilates Ladder Barrels use a four-rung ladder and adjustable sliding-base design across both the Maple and Oak series.

How to Set Up the Ladder Barrel Before You Begin

Correct setup should come before exercise selection. A poorly positioned or unlocked apparatus can make it difficult to establish control, even if you already know the movement.

1. Clear the surrounding area

Allow enough space around the Ladder Barrel for your arms, legs and torso to extend beyond the equipment.

Remove:

• Loose accessories;
• Bags and clothing;
• Small equipment;
• Nearby furniture;
• Anything that could interfere with entering or leaving the apparatus.

Remember that the operating area is larger than the physical footprint of the frame.

2. Inspect the frame and ladder

Before use, check that:

• The frame sits evenly on the floor;
• The ladder does not move unexpectedly;
• All four rungs feel secure;
• Visible fasteners are not loose;
• The wooden components are not damaged;
• The upholstery is dry and intact.

Stop using the apparatus if a structural component is loose, cracked or unstable.

3. Adjust the sliding base

Move the barrel to the distance required for your body and exercise. The position should allow you to make the intended contact with the ladder without forcing your hands or feet to reach.

Do not adjust the sliding base while another person is sitting, lying or standing on the apparatus.

4. Lock the base

After adjusting the distance, engage the locking mechanism completely. Test the apparatus gently before placing your full body weight against it.

The barrel and ladder should not move toward or away from each other during the exercise.

5. Select the appropriate rung

Choose the rung that lets you establish a controlled starting position. Your joints should not already feel strained before movement begins.

Make sure:

• Both hands use corresponding positions where appropriate;
• Both feet are supported securely;
• Clothing cannot catch on the ladder;
• You can leave the position safely;
• You are not relying on excessive grip tension.

6. Plan how you will enter and exit

Some Ladder Barrel exercises place you above the floor or in a position where you cannot easily see your surroundings.

Before starting, know:

• Where your hands will go;
• Where your feet will go;
• Which part of your body contacts the barrel first;
• How you will return to the floor;
• Whether an instructor needs to assist you.

10 Common Pilates Ladder Barrel Exercises

The descriptions below explain each exercise’s general purpose and apparatus relationship. They are not step-by-step instructions.

Your variation, range and setup should be selected by a qualified instructor who can observe your movement.

1. Swan

Swan is one of the most recognizable Pilates Ladder Barrel exercises. The front of your torso is supported by the curved barrel while your legs are positioned toward the ladder.

The apparatus helps organize spinal extension around the barrel rather than asking you to lift entirely from a flat surface.

What the apparatus provides

• Curved support beneath the torso;
• A defined position for the pelvis;
• Ladder contact for the lower body;
• Space for controlled extension and return.

What to consider

The barrel-to-ladder distance affects how your legs and pelvis relate to the curve. If the setup is too short or too long, you may compensate before beginning the movement.

Swan variations range from introductory extension work to demanding movements requiring substantial strength and control. Do not assume every Swan variation is appropriate for your current level.

2. Mermaid

Mermaid uses a side-facing position to explore lateral movement over the barrel. The curved surface supports your side body while the ladder helps position your legs or feet.

What the apparatus provides

• Support beneath the side of the torso;
• A reference for lateral flexion;
• Ladder contact for lower-body stability;
• Space for the upper body to move around the arc.

What to consider

Your pelvis should be positioned deliberately rather than placed wherever it first contacts the barrel. The sliding base and rung selection affect whether you can maintain a stable lower-body position.

You should be able to breathe and return with control rather than forcing your body into the deepest possible side bend.

3. Side Sit-Up

Side Sit-Up uses the side of the barrel to challenge lateral trunk control. Your legs or feet are supported toward the ladder while your torso moves relative to the barrel.

What the apparatus provides

• A curved base beneath the pelvis or side body;
• Ladder support for the legs;
• A larger movement range than a flat mat may provide;
• A clear relationship between the lower body and torso.

What to consider

This exercise can be demanding. Correct distance, secure foot placement and a controlled movement range are important.

A deeper lowering position is not necessarily better. Use only the range in which you can maintain control and return without momentum.

4. Short Box Round

Short Box Round adapts rounded-spine work to the Ladder Barrel. The barrel supports your seated position while the ladder helps anchor your lower body.

What the apparatus provides

• A defined seated position;
• Lower-body support through the ladder;
• A curved surface behind the body;
• A reference for controlled flexion and return.

What to consider

Your rung and sliding-base setting should let you sit securely without excessive pressure through the feet. Maintain a position that allows you to return under control.

Although the exercise shares a name with Reformer Short Box work, the Ladder Barrel changes the support, height and relationship with gravity.

5. Short Box Flat Back

Short Box Flat Back focuses on maintaining a longer trunk position while moving from the hips. The ladder helps stabilize the lower body as the barrel supports the starting position.

What the apparatus provides

• A stable seated base;
• Hand or foot positioning through the ladder;
• Space for a controlled hinge;
• Feedback about trunk position.

What to consider

Do not increase your movement range by losing the intended trunk organization. The goal is not simply to lean as far as possible.

Your instructor may change your rung or barrel distance to improve the relationship between your pelvis, legs and torso.

6. Horseback

Horseback is a demanding classical Pilates exercise that can be performed on different apparatuses, including the Ladder Barrel.

The exercise requires coordination between the legs, pelvis and trunk while maintaining control above the curved barrel.

What the apparatus provides

• A curved starting surface;
• A defined relationship between the legs and barrel;
• Space beneath and around the body;
• A different challenge from Horseback on the Reformer.

What to consider

Horseback should not be treated as a beginner exercise simply because the barrel provides support. It requires substantial control, strength and familiarity with Pilates movement principles.

Learn the exercise through appropriate progressions before attempting a complete variation.

7. Ballet Stretch

Ballet Stretch is a family of standing stretches in which one leg is supported on the ladder while the other remains on the floor.

What the apparatus provides

• Several rung heights;
• A stable frame for hand support;
• Adjustable positioning relative to the barrel;
• Different options for the supported leg.

What to consider

Choose a rung that matches your current mobility. Placing your foot higher does not automatically make the stretch safer or more effective.

Keep the sliding base locked and make sure your standing foot has enough floor space. Avoid pulling forcefully on the ladder to create additional range.

8. Hamstring Stretch

The ladder can support one foot at an appropriate height while you organize the rest of your body relative to the apparatus.

What the apparatus provides

• Multiple foot heights;
• Hand contact for balance;
• A stable reference for the supported leg;
• Adjustable distance from the ladder.

What to consider

Select the rung according to your available range rather than the position you hope to achieve. You should be able to maintain control without locking the knee forcefully or collapsing the torso.

The exercise should not cause sharp pain, numbness or tingling.

9. Hip Flexor Stretch

A Ladder Barrel can provide support for a controlled hip-opening position. The barrel, ladder or both may help establish your starting relationship.

What the apparatus provides

• An elevated support surface;
• Several hand-contact options;
• Adjustable spacing;
• A stable structure for a split-position setup.

What to consider

The movement should come from an organized position rather than an uncontrolled forward shift. The correct setup depends on your leg length, balance and available hip movement.

Use instructor guidance to determine the appropriate variation and depth.

10. Back Extension Preparation

Back Extension Preparation introduces the relationship between your front body and the curved barrel without requiring the range or strength of a full Swan variation.

What the apparatus provides

• Support beneath the torso;
• Feedback from the curved surface;
• Ladder contact for stability;
• A defined starting and returning position.

What to consider

This is still an extension exercise. A smaller movement performed with control may be more useful than a larger movement created through momentum.

Your instructor can adjust the base and ladder contact to reduce or increase the movement demand.

Beginner, Intermediate and Advanced Ladder Barrel Work

A Ladder Barrel is not limited to one experience level. The exercise, setup and range determine the difficulty.

Beginner-oriented Ladder Barrel work

Introductory work may include:

• Learning how to approach and leave the apparatus;
• Finding a secure rung position;
• Using a smaller range;
• Maintaining several points of contact;
• Supported mobility exercises;
• Basic breathing and trunk-control work.

Beginners should learn how the sliding base and ladder positions affect the body before progressing to more demanding exercises.

Intermediate Ladder Barrel work

Intermediate exercises may add:

• A larger movement range;
• Less upper-body support;
• More demanding lateral work;
• Greater coordination between the trunk and legs;
• Longer lever positions;
• More challenging transitions.

You should still be able to enter, perform and leave the exercise without losing control.

Advanced Ladder Barrel work

Advanced repertoire may include:

• Greater spinal extension;
• Elevated or partially unsupported positions;
• Inverted variations;
• Smaller bases of support;
• Complex transitions;
• Exercises requiring substantial strength and mobility.

Do not progress based only on how long you have owned the apparatus. Exercise selection should reflect your actual movement control and experience.

How the Four Ladder Rungs Change Your Setup

The four ladder rungs are not four fixed difficulty levels. They are positioning options.

Changing the rung can alter:

• The height of your hands or feet;
• Your distance from the floor;
• Your joint angles;
• Your relationship with the barrel;
• The amount of support available;
• The starting position of the exercise.

When using a higher rung

A higher rung may increase the height of a supported foot or change the angle of your arms. Depending on the exercise, this can increase or reduce the movement demand.

It should not be selected merely because it appears more advanced.

When using a lower rung

A lower rung may provide a more accessible position for some exercises, but it can also change the body angle in ways that make another movement more demanding.

How to choose the correct rung

You should be able to:

• Establish contact without forcing your range;
• Maintain a secure grip or foot position;
• Keep the rest of your body organized;
• Breathe normally;
• Return from the exercise with control.

If the rung position causes you to twist, grip excessively or lose balance before the movement starts, adjust your setup.

How to Adjust the Sliding Base

The sliding base helps you adapt the Ladder Barrel for different body proportions and exercises.

Move the barrel closer when:

• You cannot reach the selected rung without overextending;
• Your feet do not have stable contact;
• The starting position feels unnecessarily stretched;
• Your instructor determines that you need a shorter setup.

Move the barrel farther away when:

• You do not have enough room between the two sections;
• Your limbs feel compressed in the starting position;
• The selected exercise requires a longer body line;
• Your instructor determines that you need more distance.

These are general considerations, not universal rules. The effect of distance changes with the exercise.

Safe adjustment sequence

1. Make sure no one is on the apparatus.
2. Release the locking mechanism.
3. Move the barrel to the intended position.
4. Re-engage the lock completely.
5. Test the base gently.
6. Begin only after confirming that it is secure.

In a studio, instructors should return the equipment to an appropriate neutral position after use instead of assuming the previous setting will suit the next client.

Ladder Barrel Safety and Common Setup Mistakes

Mistake 1: Beginning before locking the base

An unlocked sliding base can move when weight is applied. Always check it before getting onto the apparatus.

Mistake 2: Choosing a rung that is too far away

If you must twist, pull or force your range just to reach the rung, your setup needs to change.

Mistake 3: Treating a deeper stretch as a better stretch

The Ladder Barrel can create a substantial movement range. Do not use the apparatus to force your body beyond a position you can control.

Mistake 4: Ignoring the entry and exit

An exercise is not safely organized if you cannot leave the position with control. Plan both directions before beginning.

Mistake 5: Using momentum

Swinging or dropping into the barrel can reduce control and increase risk. Move deliberately unless a specific advanced variation is being taught by an instructor.

Mistake 6: Attempting advanced exercises without preparation

Exercises such as Horseback, deep Swan variations and unsupported positions require progression. Watching an exercise is not the same as being prepared to perform it.

Mistake 7: Using an unstable apparatus

Stop if you notice:

• A loose rung;
• Movement in the frame;
• An unlocked base;
• Damaged upholstery;
• Loose hardware;
• Uneven contact with the floor.

Mistake 8: Confusing discomfort with progress

Muscular effort and a controlled stretch can be part of Pilates practice, but sharp pain, numbness, dizziness or loss of control are signals to stop.

If you have an injury, medical condition or unexplained symptoms, seek appropriate professional guidance before using the apparatus.

Ladder Barrel vs. Reformer Exercises

A Ladder Barrel and Pilates Reformer can share exercise names, but the equipment changes how you perform them.

For example, Swan on a Ladder Barrel uses the barrel curve and ladder relationship. Swan on a Reformer involves the carriage, footbar and spring resistance. The exercise name may be similar, but the support and movement demands differ.

A Ladder Barrel does not replace a Reformer, and a Reformer does not provide the same curved surface or ladder positions. The two apparatuses can complement each other within a complete Pilates practice.

Should You Add a Ladder Barrel to Your Practice?

A Pilates Ladder Barrel may be a useful addition if you:

• Have a permanent equipment area;
• Want a four-rung ladder for hand and foot positioning;
• Need an adjustable sliding base for different users;
• Already practice Ladder Barrel exercises with an instructor;
• Want to expand beyond mat and Reformer work;
• Prefer a full-size barrel over a portable Spine Corrector;
• Run a studio that teaches a broader apparatus repertoire.

A Ladder Barrel may not be your best next purchase if you:

• Need equipment that folds or stores easily;
• Have very limited operating space;
• Have never used the apparatus;
• Mainly want a portable curved surface;
• Do not need ladder-assisted positions;
• Would receive the same practical value from a Spine Corrector.

If you are choosing between these two apparatuses, read our Ladder Barrel vs. Spine Corrector comparison.

If a four-rung ladder, adjustable sliding base and full curved barrel match your practice, explore the 1GKU Pilates Ladder Barrels. The Maple and Oak series share the same functional structure, allowing you to choose according to wood, upholstery color and price.
